LTE Outdoor CPE
Our LTE outdoor CPE product line offers a rich selection of different class ODU models ranging from CAT4 to CAT7 UE categories. It can support residential, enterprise and service operator requirements for quick LTE deployment. Special customized LTE band solution can be provided upon customer request.
|

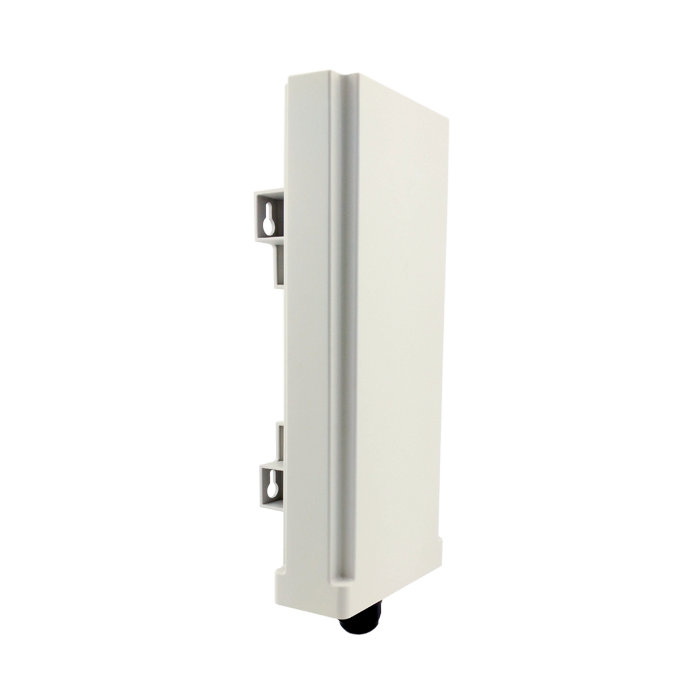

Description |
Cost
Effective LTE Outdoor CPE |
||
|
Standards |
3GPP Release
9, Category 4 |
||
|
Radio
Operation |
1T2R, TxD, DL
2x2 MIMO, Optional UL QAM64 Support |
||
|
Bands | Tx
Power | Antenna gain |
B42/43/48 |
23dBm Tx |
12 dBi |
|
B38/40/41 |
23dBm Tx |
10 dBi |
|
|
User
Interface |
1 FE (PoE,
24V) |
||
|
Dimension
& Weight |
310mm(L) *
122mm(W) * 75mm(D) |
1.5kg |
|
|
Power Supply |
24V PoE
Adapter |
||
|
Description |
Carrier Class
LTE Outdoor CPE |
||
|
Standards |
3GPP Release
9, Category 4 |
||
|
Radio
Operation |
1T2R, TxD, DL
2x2 MIMO, Optional UL QAM64 Support |
||
|
Bands | Tx
Power | Antenna gain |
B42/43 |
27dBm Tx |
15 dBi |
|
B7/38/40/41 |
23dBm Tx |
12 dBi |
|
|
B3 |
23dBm Tx |
10 dBi |
|
|
B12/17/20 |
23dBm Tx |
6 dBi |
|
|
User
Interface |
1 FE (PoE,
48V) |
||
|
Dimension
& Weight |
198mm(L) *
194mm(W) * 48mm(D) |
2.5kg |
|
|
Power Supply |
48V PoE
Adapter |
||
|
Description |
LTE-A Industrial Outdoor CPE |
||
|
Standards |
3GPP Release 12,
Category 12 |
||
|
Radio
Operation |
FDD 2T2R, UL MIMO or 2CA, DL 2 X 2 MIMO 4CA |
||
|
Band | Tx
Power | Antenna gain |
B28a |
23dBm Tx |
7 dBi |
|
User
Interface |
1 GE RJ45 |
||
|
Dimension
& Weight |
203mm(L) * 203mm(W)
* 102mm(D) |
2kg |
|
|
Power
Supply |
24~57V Passive
PoE Adapter |
||
|
Description |
Premium LTE
Outdoor CPE |
||
|
Standards |
3GPP Release
9, Category 4 |
||
|
Radio
Operation |
1T2R, TxD, DL
2x2 MIMO, Optional UL QAM64 Support |
||
|
Bands | Tx
Power | Antenna gain |
B42/43 |
27dBm Tx |
17 dBi |
|
B7/38/40/41 |
23dBm Tx |
14 dBi |
|
|
B31 |
23dBm Tx |
5 dBi |
|
|
User
Interface |
1 FE (PoE,
48V) |
||
|
Dimension
& Weight |
250mm(L) *
250mm(W) * 75mm(D) |
2.5kg |
|
|
Power Supply |
48V PoE
Adapter |
||
|
Description |
Enterprise
LTE Outdoor CPE for Vertical and Hot Spot APP |
||
|
Standards |
3GPP Release
10, Category 6 & 7 |
||
|
Radio
Operation |
2T2R, DL 2x2
MIMO & CA, Optional UL QAM64 Support |
||
|
Bands | Tx
Power | Antenna gain |
B42/43 |
23dBm per
antenna |
17 dBi |
|
B38/40/41 |
23dBm per
antenna |
14 dBi |
|
|
User
Interface |
1 GE (PoE,
48V) + 1 FE (optional outbound 12V PoE) + optional 802.11b/g/n/ac dual band
Wi-Fi support |
||
|
Dimension
& Weight |
250mm(L) *
250mm(W) * 75mm(D) |
2.5kg |
|
|
Power Supply |
48V PoE
Adapter |
||
|
Description |
Premium LTE
Outdoor CPE |
||
|
Standards |
3GPP Release
10, Category 7 |
||
|
Radio
Operation |
2T4R or 2T2R,
DL 4x4 MIMO, UL CA & MIMO, UL QAM64 Optional |
||
|
Bands | Tx
Power | Antenna gain |
B42/43/48 |
23dBm per
antenna |
17 dBi (2T2R) |
|
14 dBi (2T4R) |
|||
|
B38/40/41 |
23dBm per
antenna |
10 dBi (2T4R) |
|
|
User
Interface |
1 GE (PoE,
48V) |
||
|
Dimension
& Weight |
250mm(L) *
250mm(W) * 75mm(D) |
2.5kg |
|
|
Power Supply |
48V PoE
Adapter |
||
