Modules

We offer a variety of LTE modules for integration with embedded devices or industrial equipment. User can select any subset of the bands required to reduce the module cost. All module design supports standard USB version or advanced host less version. The host version provides advanced USB/ETH router features such as multiple APN, IPv4 & IPv6, bridge and route networking, and VPN (PPTP, L2TP, GRE) clients. Local and remote TR069 management are also supported.

The common form factor of the modules are mini PCIe. Other modules type or form factors can be accommodated for qualified business customer.

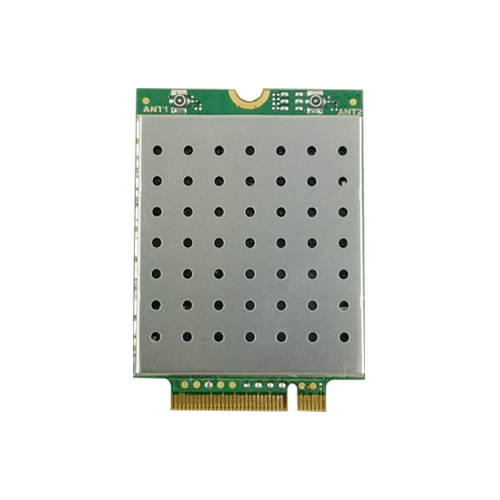

CAT4 M2 MODULES (2x2 MIMO, 1T2R)

M2	B2/5/12/13/17/25/26/41	USB			Standard size(M3042)

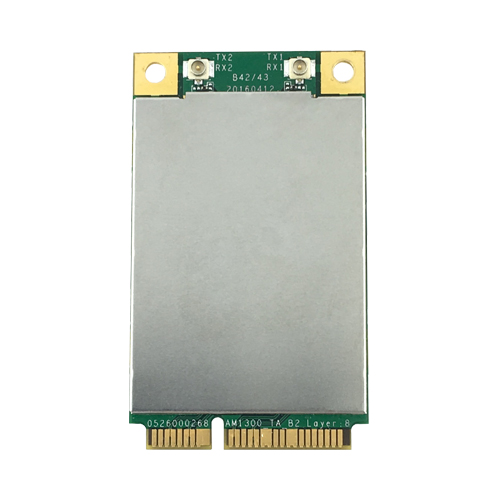

CAT5 PCIe MODULES (2x2 MIMO, 1T2R)

PCIe 	B3/7/20/38		USB			Standard Size
PCIe 	B42/43			USB			Standard Size
PCIe 	B38/40/41		RGMII & USB		Customized Size
PCIe 	B3/7/8/20 + B42/43	RGMII & USB		Customized Size
PCIe 	B3/7/13/28/31		USB & ETH & VoLTE	Standard Size
PCIe 	B3/7/8/20/38/31		USB & ETH & VoLTE	Standard Size
PCIe 	B31 /B42/43/48		USB & ETH & SDIO	Standard Size
PCIe 	B3/7/20/31		USB & ETH & SDIO	Standard Size

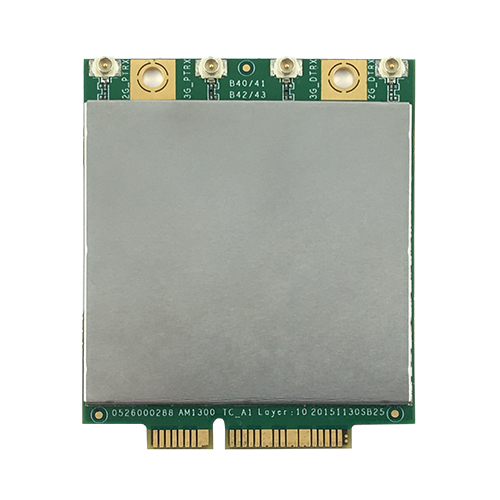

CAT6 PCIe MODULES (2x2 MIMO & CA, 1T2R)

PCIe 	B40/41 + B42/43		RGMII			Customized Size

CAT7 PCIe MODULES (4x4 MIMO & CA, 2T4R)

PCIe 	B42/43/48 		RGMII & USB		Customized Size
PCIe 	B3/7/20/40/41 		RGMII & USB		Customized Size

CAT12 PCIe MODULES (8x8 MIMO & CA, 4T8R)

PCIe 	B42/43 	 		RGMII & USB3.0		Customized Size
Image Image Image
